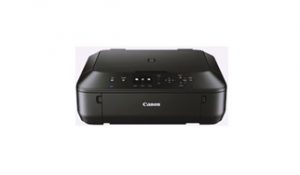

Canon PIXMA MG5660 Driver Download & Setup

Canon PIXMA MG5660 Driver Download & Setup For Windows, Mac, Linux – If you are looking for satisfaction in using the printer, PIXMA MG5660 can be a good choice. This printer has a good specification to provide the users with satisfaction. Of course, the satisfaction is about the printing speed and its quality. About the printing speed, this printer is able to do the mono printing up to 12.2 pages per minute. Then, it can print up to 8.7 pages per minute for color printing. Furthermore, this printer can print photos in only about 44 seconds. It is quite good speed to have.

About its quality, Canon MG5660 provides some interesting point to offer. The first one is about the cartridge ability. The cartridge of this printer can produce the very small size of ink droplets. The size is up to 2 pl. With this size, then it is not a big problem to have better details and accuracy. The color will also be sharper and better. Furthermore, this printer can provide good resolution. Its resolution is up to 4800 x 1200 dpi.

If you are looking for easy access in printing, this printer provides mobile printing and wireless printing. Canon PIXMA MG 5660 has a built-in wireless device to provide the mobile printing. It means that users can print directly from gadget without using PC or be transferring the file first. It is easy.

Also, update driver: Canon PIXMA MG2260 Driver & Software For Windows, Mac, Linux

COMPATIBILITYSPECIFICATIONHOW TO SETUPDOWNLOAD LINKS

Canon PIXMA MG5660 Operating System Compatibility

Windows 7 / Windows 7 (x64) / Windows 8 / Windows 8 (x64) / Windows 8.1 / Windows 8.1 (x64) / Windows 10 / Windows 10 (x64) / Windows Vista / Windows Vista (x64) / Windows XP / Windows 2000 / Windows Me / MacOS Sierra v10.12 / Mac OS X v10.11 / Mac OS X v10.10 /Mac OS X v10.9 / Mac OS X v10.8 / Mac OS X v10.7 / Mac OS X v10.6 / Mac OS X v10.5 / Mac OS X v10.4 / Linux.

Specification Canon PIXMA MG5660

  • Speed: Colour document: Approx 20 sec, Multiple Copy: Up to 99 copies, Reduction/Enlargement: 25% to >400%
  • Scanner Type: Flatbed CIS, Scanning resolution: 1200 x 2400 optical dpi
  • Software Included: My Image Garden, Easy WebPrint EX (IE7+ only), Canon Solution Menu, Adobe RGB, On Screen Manual
  • Printing Resolution: 4800 (horizontal)x 1200 (vertical) dpi, Print Speed; B&W: 12.2 ipmColour: 8.7 ipm4”X6” photo: Approx. 44 seconds.
  • Ink Tanks: PGi650BK, CLi651BK, CLi651C, CLi651M, CLi651Y(optional XL ink tanks also available)
  • Supported Paper Sizes: A4, Letter, Legal, A5, B5, Envelopes (DL, COM10), 4″x6″, 5″x7″, 8″x10″
  • Power Consumption: Standby (Lamp off, connect to PC via USB): Approx 1.1 W, OFF (Connect to PC via USB) 0.3 W, Copying8: Approx 11 W
  • Dimensions (W x D x H): 455 x 369 x 148mm, Weight: Approx. 6.3 kg

Software & Driver Installation For Canon PIXMA MG5660

Method 1: Canon PIXMA MG5660 Installation Steps by Steps Using Free Download

This time, without CD installation or automatic wizard, will be used for the installation of Canon PIXMA MG5660.

Follow the instruction below:

  1. Ensure that you have software file or driver setup of Canon PIXMA MG5660. In case you don’t have, the link below is for anyone who needs the software file.
  2. USB cable is necessary, thus you can connect your computer and the printer. USB cable usually comes with the printer package.

After you are done with the preparations for the installation of Canon PIXMA MG5660 using Setup File, below mentioned is what to do with the installation.

  1. Switch ON Canon PIXMA MG5660 and your computer.
  2. Before it’s instructed, don’t connect the USB cable of PIXMA MG5660.
  3. Canon PIXMA MG5660 driver setup should be downloaded, thus you can start the installation.
  4. Anytime driver setup installation is done, connect Canon PIXMA MG5660 USB cable. The wizard, then, will detect the USB cable. Once the USB cable is detected, you will be led to the installation instructions of Canon PIXMA MG5660.
  5. You only need to follow the installation steps-by-steps.
  6. Anytime the installation is complete, Canon PIXMA MG5660 is ready to use.

Method 2: Manual Setting Up Of Canon PIXMA MG5660 Drivers

Considering this approach or method for the installation, find Add A Printer selection you get from the inbuilt feature for Windows.

Prepare:

  1. Canon PIXMA MG5660 Driver Setup file or Software. Don’t have the Driver Setup file, find them through the link that is available.
  2. Canon PIXMA MG5660 USB cable is necessary

The Installation Steps-by-Steps:

  1. Switch ON your devices, both Canon PIXMA MG5660 and your computer.
  2. Pair the Canon PIXMA MG5660 USB cable and your computer.
  3. Setup file of Canon PIXMA MG5660 should be extracted which file you can find through TEMP folder.
  4. Hit start, then Control Panel, and locate View Devices & Printer when it comes to Windows 7 and Vista. Hit Fax & Printers for XP users.
  5. Locate Add a Printer.
  6. Finish with it, provide the path for the extracted setup file.
  7. Follow the installation instructions from the wizard.
  8. The installation of Canon PIXMA MG5660 is complete, and the printer is now can be used.

Method 3: Canon PIXMA MG5660 Installation Driver Free Download

Using software CD or Automatic Wizard for the installation of Canon PIXMA MG5660

Ensure that you prepare:

  1. Your computer should have installed DVD/CD drive.
  2. Grab Canon PIXMA MG5660 Driver CD or Software Disk that you get from the printer package.
  3. Another thing that you need is USB cable that is used to connect your computer and printer. This one also becomes one package with the printer.

For the installation process of Canon PIXMA MG5660 using CD Drive, follow the below mentioned.

  1. Switch ON the devices which are needed for the installation process of Canon PIXMA MG5660, such as, the printer itself and your computer.
  2. Only when it is suggested, don’t connect the Canon PIXMA MG5660 to your computer.
  3. Get the CD disk of your Canon PIXMA MG5660 to your computer DVD/CD drive. When the instructions for the installation pop up, follow them.
  4. Connect Canon PIXMA MG5660 USB cable to your computer anytime the setup wizard instructs you.
  5. It sometimes takes until Canon PIXMA MG5660 USB cable gets detected. Afterward, the instructions for the installation process will appear to complete the installation.
  6. Canon PIXMA MG5660 is now ready for you to use when the installation is complete.

How to Install Canon PIXMA MG5660 Printer Driver on Linux

Requirements:

  1. A Linux-run device
  2. A Common Unix Printer Service (CUPS) installed on the device.

Guidelines:

  1. Run the computer and run the CUPS.
  2. Visit the web-based interface.
  3. Open a browser and navigate to localhost: 631.
  4. Connect the printer.
  5. On the browser, go to Administration tab and select Printers.
  6. Select Add Printer.
  7. Enter username and password.
  8. Your printer (Canon PIXMA MG5660) should be on the list displayed. Select it and press Continue.
  9. CUPS detect and add the printer.
  10. A configuration window will pop up, fill values as needed.
  11. The printer is ready to use.

How to Uninstall Canon PIXMA MG5660 Printer Driver

For Windows:

  1. Look for the Windows button on your device’s keyboard.
  2. Select Control Panel.
  3. Look for Uninstall a Program tab, select it.
  4. Look for the name of the printer driver you wish to uninstall.
  5. Click on the Uninstall button.
  6. Wait until the process is done.

For Mac:

  1. Open Apple Menu.
  2. Select System Preferences.
  3. Select Printers and Scanners.
  4. Choose a printer driver that you wish to uninstall. (Select Canon PIXMA MG5660 if your printer is of that type.)
  5. Click Remove.

For Linux:

  1. Go to Application.
  2. Select System Settings.
  3. Select Printers. Printer window will pop up.
  4. Locate Unlock button on the upper right section, select it.
  5. Enter password.
  6. Locate the Canon PIXMA MG5660 printer driver your wish to uninstall. Find a minus sign under it.
  7. Click the minus sign.

PIXMA MG5660 Wireless Connection Setup

Connecting with WPS

Requirement:

  1. Physical WPS push button must be present.
  2. The network must use WPA or WPA2 security.

Step 1

  1. Press printer’s Home button.

Step 2

  1. Use navigation arrows to select WLAN Setup icon.
  2. Press the left function button.

Wi-Fi lamp will light up after enabling wireless connection. Printer searches for access that supports WPS.

Step 3

  1. Press and hold WPS button for 5 seconds, release.
  2. Press OK button after 2 minutes.
  3. After the connection is made, press OK to complete setup.

Install software for PIXMA MG5660.

If the connection still fails, please contact manufacturer.

Standard Connection Method

Step 1

  1. Press printer’s Home button.

Step 2

  1. Use navigation arrows to select WLAN Setup icon.
  2. Press the left function button.

Wi-Fi lamp will light up after enabling wireless connection. Printer searches for access that supports WPS.

Step 3

  1. Press the Stop/Reset button
  2. Select Standard setup then press OK button to start process of standard setup.

Printer is searching for available wireless network.

  1. Use navigation arrows to select access point (the name of your network). Press OK.

Press left function button to search again if you cannot see your network on the list.

  1. Press OK to input/edit network password (case sensitive).

Use the virtual keyboard to enter a password. Follow the procedure as instructed:

  1. Password is case sensitive. Press the center function button to navigate between numeric, upper case, and lower case.
  2. Use navigation arrows to pick a character on the keyboard, press OK to confirm selection, and move another character.
  3. Repeat step (a) and (b) for more characters to input.
  4. After inputting password, press left function button to complete.
  5. Confirm your password. Press OK to edit, if needed.
  6. Press left function button to complete setup. Press OK.

Follow by installing software for PIXMA MG5660.

If the connection still fails, please contact the manufacturer.

PIXMA MG5660-factory default settings

Step 1

  1. Press printer’s Home button.

Step 2

  1. Use navigation arrows to select Setup icon.
  2. Press the right function button.

Step 3

  1. Use left navigation arrow to select Device Settings.
  2. Press OK.

Step 4

  1. Use up navigation arrow to access LAN settings.
  2. Press OK.
  3. Use down navigation arrow to select Yes for reset setting.
  4. Press OK.
  5. WLAN Settings now reset. A message [Processing….Please wait momentarily] is shown.
  6. Press OK to complete resetting WLAN.

canonupdates.com provide a download link for Canon PIXMA MG5660 publishing directly from Canon website with easy-to-download, to get the download link can be found below.

Operating SystemVersionSizeDownload
Canon MG5660/MG5600 Series MP Drivers (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)1.0132 MBDownload
Canon MG5660/MG5600 Series XPS Printer Driver (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64)5.8019 MBDownload
Canon MG5660/MG5600 Series Full Driver & Software Package (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)1.052 MBDownload
My Printer (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)3.3.05.6 MBDownload
Easy-WebPrint EX (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)1.6.015 MBDownload
Easy-PhotoPrint EX (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)4.5.058 MBDownload
My Image Garden (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)3.3.0293 MBDownload
Quick Menu (Windows 10/10 x64/8.1/8.1 x64/8/8 x64/7/7 x64/Vista/Vista64/XP)2.6.19.2 MBDownload
Canon MG5660/MG5600 Series Full Driver & Software Package (OS X 10.11/10.10/10.9/10.8/10.7/Mac OS X 10.6)1.220 MBDownload
Canon MG5660/MG5600 Series CUPS Printer Driver (OS X 10.12/10.11/10.10/10.9/10.8/Mac OS X 10.7)16.10.0.015 MBDownload
Canon MG5660/MG5600 Series CUPS Printer Driver For Mac (OS X 10.6)11.7.1.017 MBDownload
ICA Driver (OS X 10.12/10.11/10.10/10.9/10.8/Mac OS X 10.7)4.1.32.5 MBDownload
ICA Driver For Mac (OS X 10.6)3.3.43.7 MBDownload
Quick Menu (OS X 10.11/10.10/10.9/10.8/Mac OS X 10.7)2.6.12.2 MBDownload
My Image Garden (OS X 10.11/10.10/10.9/10.8/Mac OS X 10.7)3.2.0299 MBDownload
IJ Scan Utility (OS X 10.11/10.10/10.9/10.8/Mac OS X 10.7)2.1.621 MBDownload
Canon IJ Network Tool (OS X 10.11/10.10/10.9/10.8/Mac OS X 10.7)4.6.15.6 MBDownload
Easy-PhotoPrint EX (OS X 10.11/10.10/10.9/10.8/Mac OS X 10.7)4.6.0102 MBDownload
My Image Garden For Mac (OS X 10.6)3.1.0298 MBDownload
Quick Menu For Mac (OS X 10.6)2.5.02.4 MBDownload
IJ Scan Utility For Mac (OS X 10.6)2.0.1220 MBDownload
Canon IJ Network Tool for Intel Mac (OS X 10.5/10.6)4.4.15.3 MBDownload
ScanGear MP for Linux (Source file)3.00204 KBDownload
IJ Printer Driver for Linux (debian Packagearchive)5.00474 KBDownload
IJ Printer Driver for Linux (rpm Packagearchive)5.00262 KBDownload
IJ Printer Driver for Linux (Source file)5.00376 KBDownload
ScanGear MP for Linux (debian Packagearchive)3.00236 KBDownload
ScanGear MP for Linux (rpm Packagearchive)3.00213 KBDownload
Canon MG5660/MG5600 Series (PDF) User Manual (Mac)1.110 MBDownload
Canon MG5660/MG5600 Series (PDF) User Manual (Windows)1.114 MBDownload
Guide for Quick Menu (Mac)V2.61.1 MBDownload
Guide for Quick Menu (Windows)V2.61.1 MBDownload
Guide for My Image Garden (Mac)V3.211 MBDownload
Guide for My Image Garden (Windows)V3.211 MBDownload
ScanGear MP for Linux (Operation guide)3.0085 KBDownload
IJ Printer Driver for Linux (Operation guide)5.0072 KBDownload
Canon MG5660/Canon MG5650/MG5600 Series - Getting Started GuideCA.1.001.1 MBDownload
Canon MG5660/MG5600 Series Getting Started GuideV11.2 MBDownload
Canon MG5660/MG5600 Series Getting Started GuideV11.2 MBDownload

Canon PIXMA MG5660 Driver & Software Free Download For Windows, macOS, Linux

You do not have to go into another website ever since you will get the driver of Canon PIXMA MG5660 since you can download them on our site www.canonupdates.com that provide the download link for both software & driver of canon series from the Official site. You need only to hit the download link below and then follow the instructions manually. User manual can be downloaded as well, thus you effortlessly can finish the installation process.

Canon PIXMA MG5660 Driver & Software Download
